FPC Design Issues and Solutions: DFM Overview

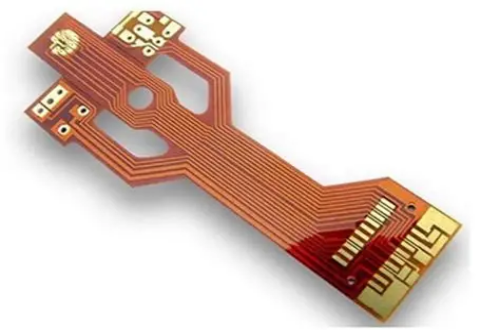

The goal of FPC (Flexible Printed Circuit) design is to ensure that the product is efficiently, reliably, and cost-effectively manufactured while meeting performance requirements. The design process must pay special attention to "Design for Manufacturability" (DFM) to avoid quality issues, increased costs, delays, and other complications. Below are the key considerations for FPC design.
FPC design should aim to maximize yield, ensure high reliability, reduce costs, and simplify assembly:
l Maximize Yield: Minimize defects during manufacturing (e.g., open circuits, short circuits, delamination).
l High Reliability: Ensure the FPC meets performance requirements throughout assembly, testing, and its expected lifetime, especially in terms of bending life.
l Reduce Costs: Reduce costs by optimizing material usage, minimizing processing steps, and shortening production cycles.
l Simplify Assembly: Ensure ease of SMT and manual assembly.
l Material Selection:
n Bendability: For dynamic bending, high elongation rolled copper and flexible substrates are required. Static bending can use less flexible materials.
n Temperature Resistance: Choose base materials and adhesives based on soldering temperatures and operational environment temperatures.
n Electrical Performance: For high-frequency applications, focus on the dielectric constant and loss factor, which may require LCP materials.
n Cost: Choose the most cost-effective material that still meets performance requirements.
l Laminate Design:
n Symmetry: For multilayer boards, design symmetrical layers to reduce warping risks.
n Copper Thickness Matching: Avoid large differences in copper thickness between layers, which can increase pressing difficulty and warping risks.
n Reinforced Layers: Clearly specify the type, thickness, location, and bonding method of reinforced layers (e.g., PI, FR4, stainless steel, aluminum) to avoid stress concentration.
l Trace Width/Spacing: Follow the manufacturer’s etching precision capabilities and leave margins. For example, for a 3/3 mil design, manufacturers may need to be capable of 2.5/2.5 mil to guarantee yield.
l Pad Design: Pad sizes must match component leads and assembly processes (SMT vs. manual soldering), adhering to IPC standards or manufacturer recommendations. Avoid too-small pad sizes that could lead to poor soldering or detachment.
l Bend Area Design: Avoid placing vias, components, connectors, hard reinforcement layers, cover film seams, or pads in bending zones. Traces should be aligned with the bending axis or along the direction of bending.
l Via Design: Vias should be kept away from bending zones, with proper treatment (e.g., filling, covering) to prevent short circuits during assembly or use.
l Material Selection: The coverlay material should be compatible with the base material and meet the bending and thermal resistance requirements.
l Coverlay Lamination: Ensure the coverlay is applied without affecting the pad exposure or solderable area, considering process limitations.
l Tolerance: FPCs have lower dimensional stability than rigid boards, so outline dimensions should have reasonable tolerance.
l Process Selection: Choose the appropriate processing method (e.g., die cutting, laser cutting, CNC milling) based on batch size. Die cutting is cost-effective for large volumes, while laser cutting is more flexible for small volumes or complex shapes.
l Material Utilization: Maximize material usage by considering standard dimensions and adding appropriate process edges and fiducial marks during panelization.
l Impedance Control: For high-speed signal traces, the required impedance values and tolerances must be clearly marked on the design, and communication with the manufacturer is essential to ensure the achievable impedance control.
l Clear and Complete Drawings: The design drawings should include all necessary views (layer stack-up, outline, drilling diagram) and clearly label all dimensions, tolerances, material specifications, and special requirements (e.g., impedance control, via sealing, bending area identification).
l Gerber Files: Output files in the format requested by the manufacturer (typically RS-274X), ensuring all necessary layers are included and correctly aligned.
At the design stage, engage in thorough communication with the manufacturer to understand their specific process capabilities, equipment limitations, material inventories, and special process capabilities. Provide initial design concepts or key requirements (e.g., bending cycles, critical dimensions) to obtain feedback. Integrating the manufacturer’s DFM rules into your design constraints early on can significantly improve efficiency.
In conclusion, FPC design is not only about meeting performance requirements but also about aligning with the manufacturer’s capabilities. Ongoing communication with manufacturers helps ensure better product quality, lower production costs, and shorter lead times.
