As product functionality diversifies, the number of components on PCBs increases, and component leads become finer, transitioning from large-pitch SMDs to finer-pitch BGAs. How can BGA designs be optimized for manufacturability? BGA (Ball Grid Array) packages are widely used for their high density and excellent thermal and electrical performance. However, their routing and via design present key challenges in PCB design. Proper design rules are essential to ensure signal integrity, power integrity, manufacturability, and reliability. Below are core rules for BGA region routing and via hole design:

Via Design Rules

1. Via Type Selection

Micro vias are preferred: For high-density BGAs (pitch ≤ 0.8mm), blind and buried vias drilled by lasers are key for achieving high-density routing.

Through vias: For designs with larger pitches (>1.0mm) or cost-sensitive low-density designs, through vias may be considered, but ensure pad and anti-pad sizes do not occupy too much space.

Via-in-pad: Directly place micro vias on the BGA pads (usually blind vias), which is the densest solution. This design requires resin-filled vias and copper-plating to ensure good soldering yield.

2. Via Size

Ensure the smallest possible drill and pad diameters within the manufacturer's capabilities and the current-carrying capacity:

Laser blind vias: Drill diameter ~4mil, pad diameter ~10mil

Mechanical through vias: Drill diameter ≥0.2mm (8mil), pad diameter ≥ drill diameter + 0.15mm (6mil)

3. Via Pad and Anti-pad

Ensure pad sizes meet the minimum requirements of the manufacturer, providing enough copper to ensure via reliability.

Isolation rings: For power/ground layers, sufficient isolation around vias is required to prevent short circuits (typically ≥0.15mm/6mil).

4. Via Pitch

Via-to-via spacing must meet the manufacturer’s minimum hole spacing requirements (usually ≥ drill diameter or ≥ a fixed value such as 0.2mm/8mil).

Via-to-line/pad spacing must meet electrical safety and manufacturing capabilities, with high-density areas requiring fine control.

5. Via Filling and Capping

Via-in-pad: Must be filled and capped.

Resin filling: Typically filled with insulating resin.

Copper plating: Fully fills and smooths the via, ensuring good thermal and electrical conductivity, particularly suitable for high-heat applications.

Capping: Apply a copper cap over filled vias to ensure smooth surfaces for soldering and avoid flux retention or voids.

6. Via Fanout

The goal is to route signals from the BGA pad to the first via.

Fanout Rules:

Keep traces as short and straight as possible.

Use dog-bone shaped connections: Pad → short trace → via pad.

For outer layer pads, vias should slightly offset, and inner layer pads must use via-in-pad or through-layer routing.

Maintain consistent fanout direction (horizontal first, then vertical, or vice versa) to optimize routing channels.

Routing Design Rules

1. Trace Width/Spacing

Use the finest trace width and spacing to maximize routing channels, within the constraints of impedance control and current-carrying capacity. Common widths for high-density BGAs are 3/3 mil, 3/4 mil, or 4/4 mil, depending on the PCB manufacturer's capabilities.

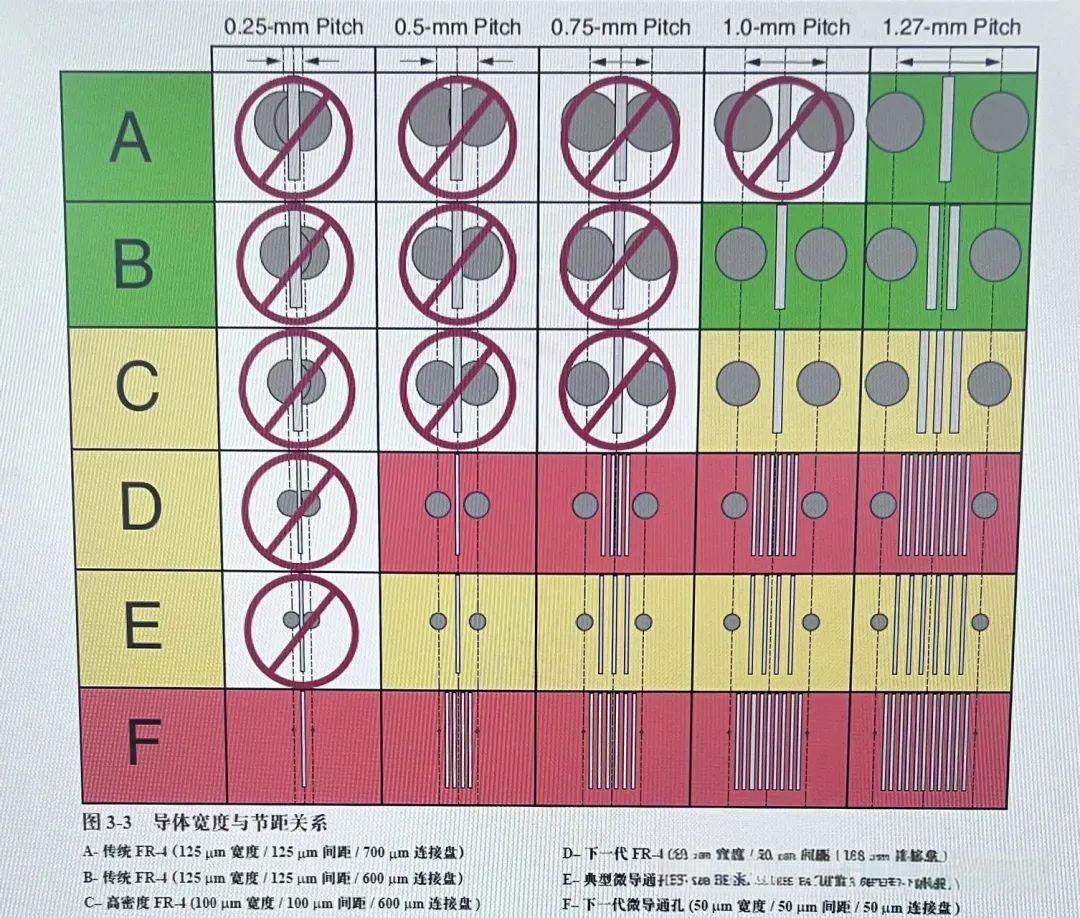

2. Pad Size/Signal Line Width/Via Hole Size

Place traces between BGA pads with a minimum width of 4mil and keep conductor spacing at least 3.5mil to avoid affecting yield.

3. IPC Standard Compliance

Reference IPC standards to ensure designs adhere to manufacturing limitations.

General Design Principles and DFM Considerations

Manufacturer Capability First: Understand the PCB manufacturer’s capabilities before starting design (minimum trace widths, drill sizes, pad requirements, etc.).

Stack-up Design: Carefully plan PCB stack-ups to ensure sufficient signal layers and well-distributed power/ground layers that meet impedance control requirements.

DFM Considerations:

u Use tear-drops at pad and trace connections for mechanical strength.

u Avoid silkscreen overlapping pads or vias, and clearly mark component orientation.

u Ensure reliable solder mask bridges to prevent short circuits, with window sizes typically 0.05-0.1mm larger than pads.

u Provide test points for easy probing.

Ball Diameter Definition:

Refer to IPC standards for ball diameter sizing during design.

Summary

Routing and via hole design in the BGA region is a complex system engineering task that requires balancing electrical performance, thermal management, manufacturability, and reliability. The key points are:

Use laser-drilled blind/buried vias, especially via-in-pad, for high-density BGAs.

Control sizes carefully, keeping within the manufacturer's capabilities for vias and trace widths.

Carefully manage via fanout and layer planning to optimize routing paths.

Ensure the design is manufacturable and reliable for long-term use.

Maintaining close communication with PCB manufacturers and assembly factories is crucial to ensure the successful design of high-density BGA boards. Early confirmation of manufacturing capabilities and limitations is key to success.
